Shipped to the USA: Back-to-Back 4 ft x 8 ft P10 DIP LED Advertising Sign with an After-Sales Spare-Parts Kit
Two 4 ft x 8 ft faces on one structure, P10 DIP lamps at 10,000 nits, IP67 rated, ETL listed - plus 14 spare modules, power supplies, cards and cables in the same shipment.
If you are ordering a double-sided outdoor LED advertising sign for a roadside location in the United States, this shipment shows what arrives. The unit is a back-to-back 4 ft x 8 ft design: two P10 DIP faces on one structure, so one installation advertises in two directions. It is built for outdoor roadside work, not for indoor narrow-pitch use. Below is the packing list, including the after-sales spare-parts kit that travels with this order.
Buyers planning a similar unit will find the configuration, the control spares and the packing details in this article. Send us your face size, mounting plan and destination city, and you will get a configuration quote for the same setup - the display, its control system and an after-sales kit for the order.
What Shipped to the United States
The shipment contains one back-to-back unit with two 4 ft x 8 ft faces - the structure type many US roadside sites choose when one installation has to serve both directions of traffic. Each face runs P10 DIP lamps with a rated brightness of 10,000 nits.

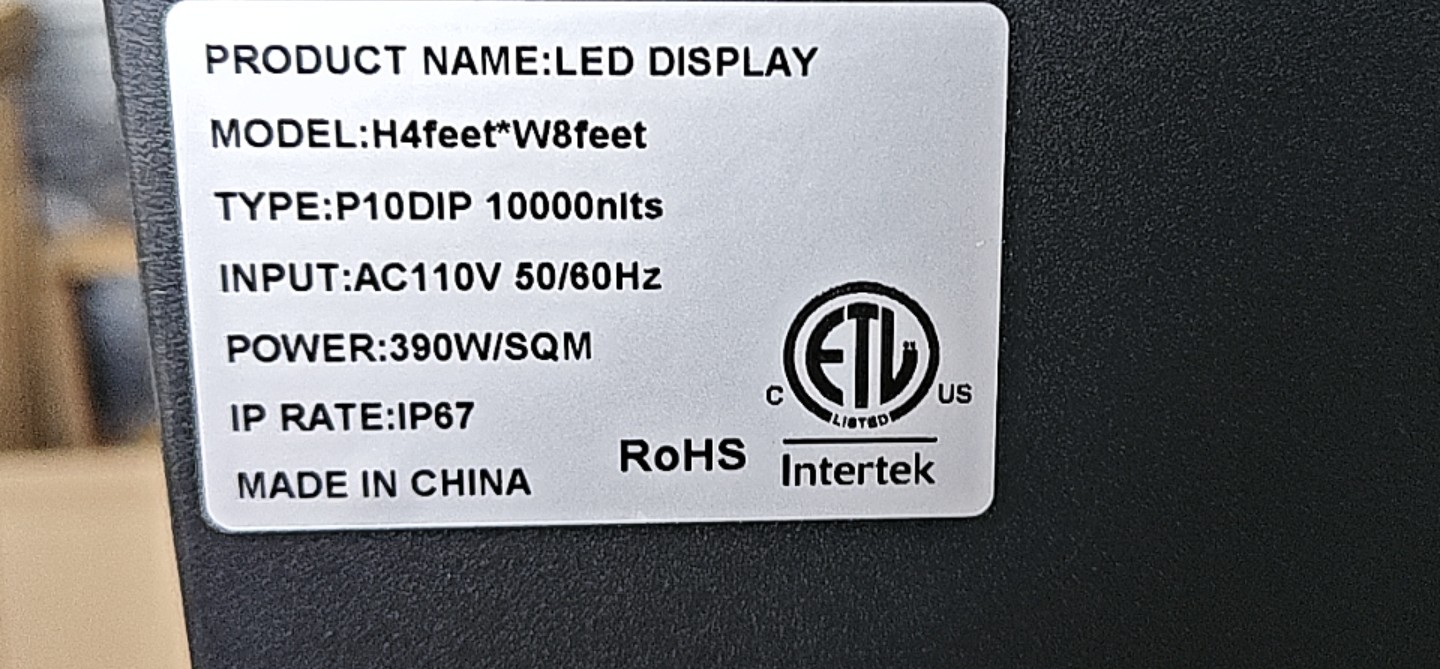

The cabinets are rated IP67 for rain and dust, run on AC 110 V, 50/60 Hz, and draw up to 390 W per square meter. The nameplate carries the ETL and RoHS marks that US buyers ask for.
Why P10 DIP Suits a Roadside Sign
P10 DIP is a common choice for roadside advertising for three practical reasons. The through-hole lamps hold their brightness in direct sunlight, the 10 mm pixel pitch is made to be read from the road rather than up close, and a failed module is replaced on site instead of swapping a whole screen.
The same logic drove the power and enclosure choices: 110 V input matches US mains, and the IP67 cabinets keep rain and dust out of the electronics.
The After-Sales Spare-Parts Kit in This Shipment

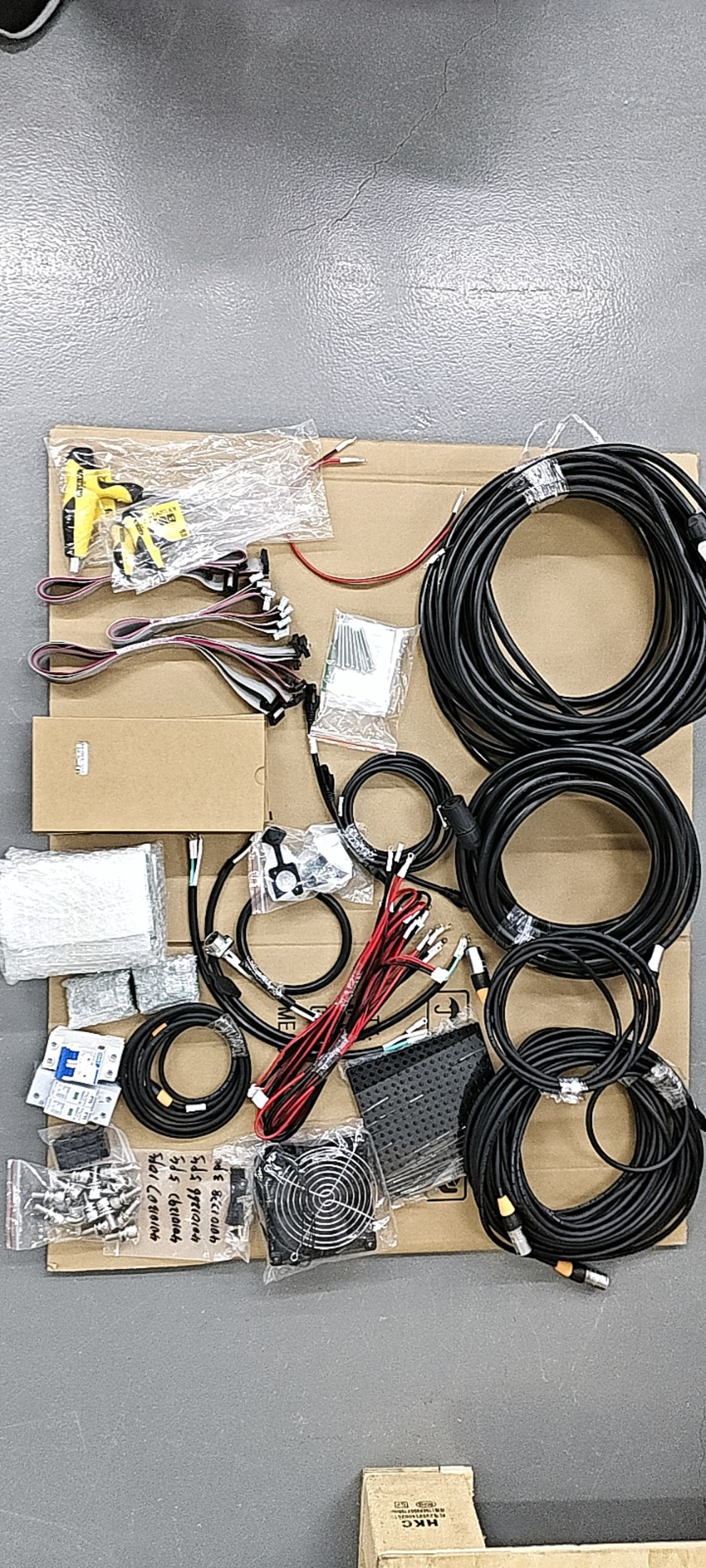

An outdoor sign runs day and night, so this order ships with the parts that keep it running. The kit includes 14 spare P10 modules at 320 x 320 mm, two spare power supplies, two receiving cards, two Novastar T30 sending cards, and the power and signal cables to connect them.
The spares travel in the same shipment as the sign, so the first repair does not wait for an international shipment.
The point of the kit is simple: when a module eventually fails, the fix is a local swap with a matching part. All spares match the 320 x 320 mm module format and the control cards used by this sign.
Packed for the Trip, Tested Before It Leaves

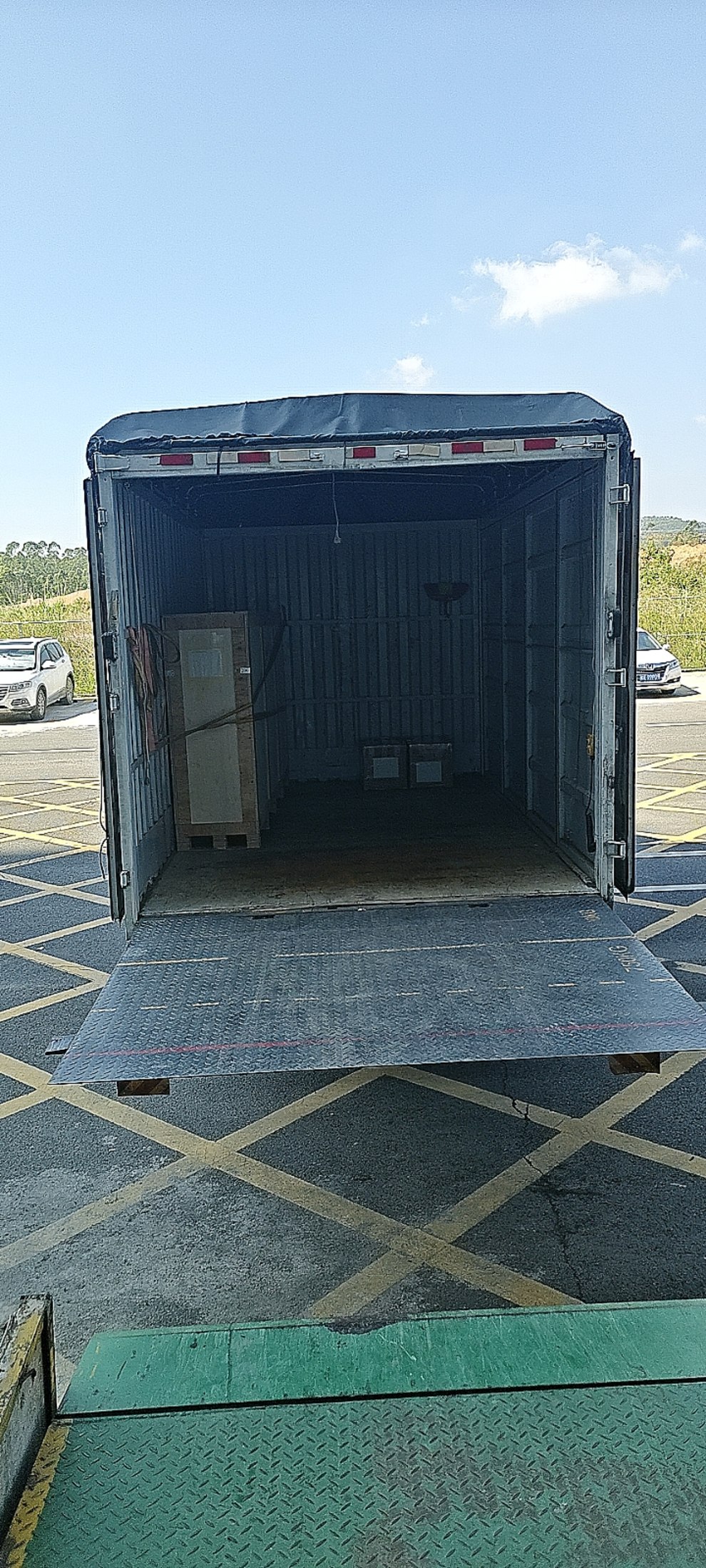

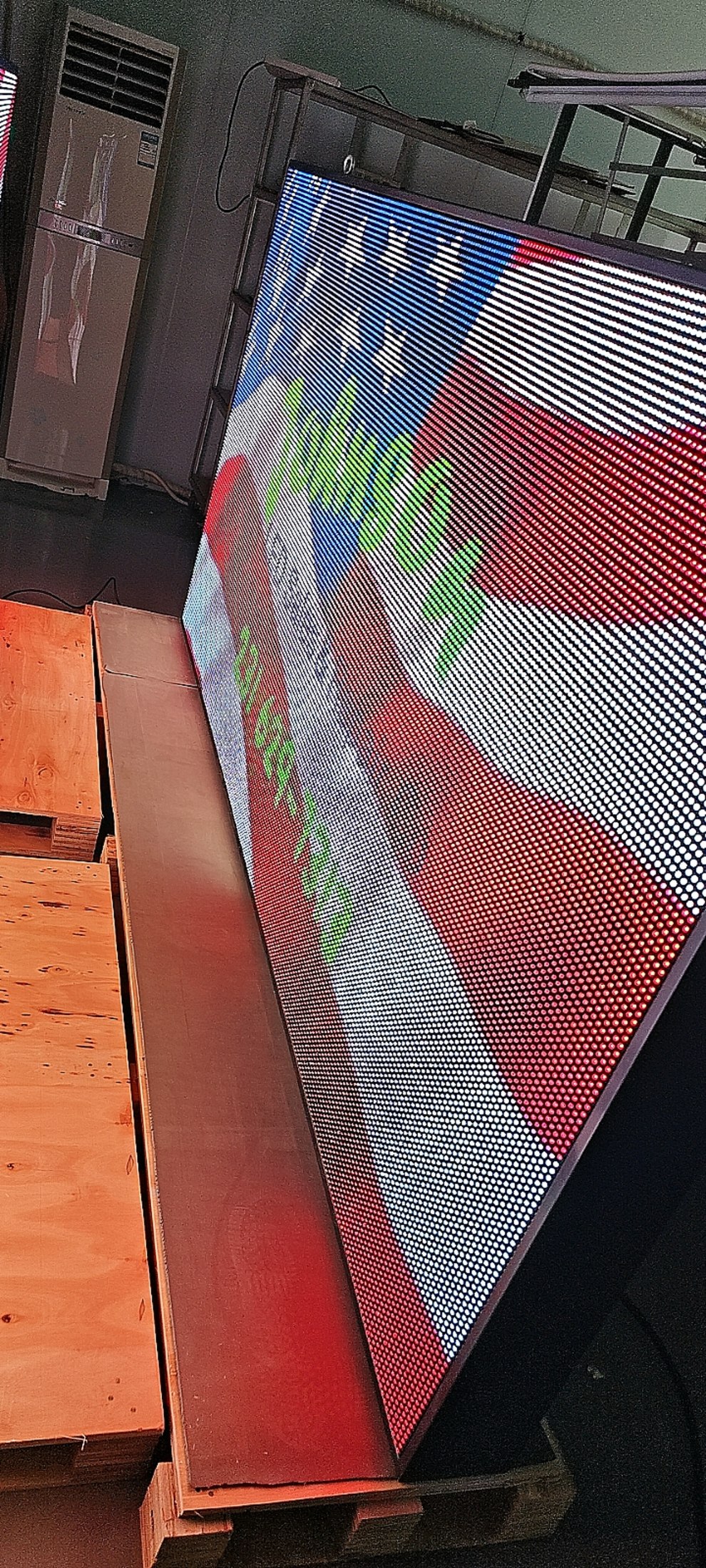

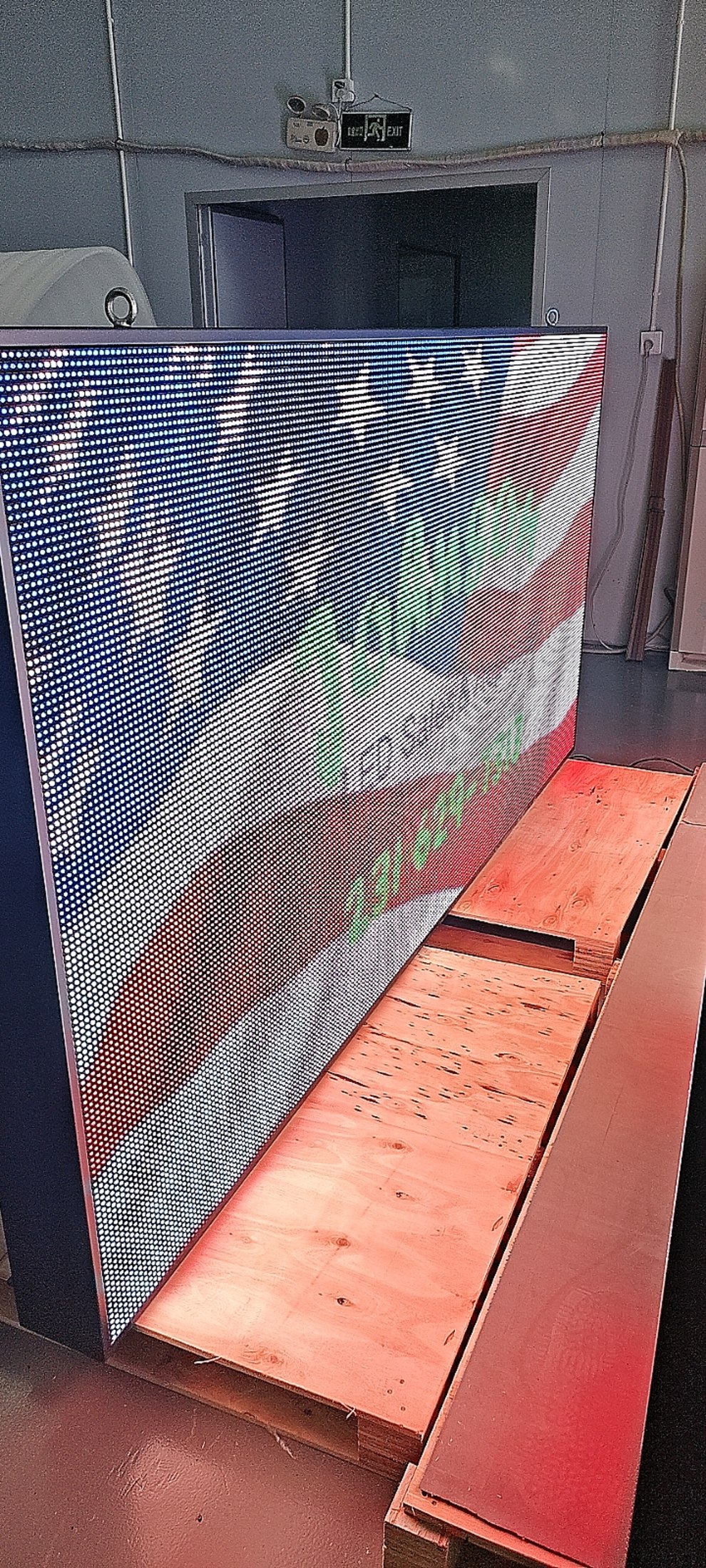

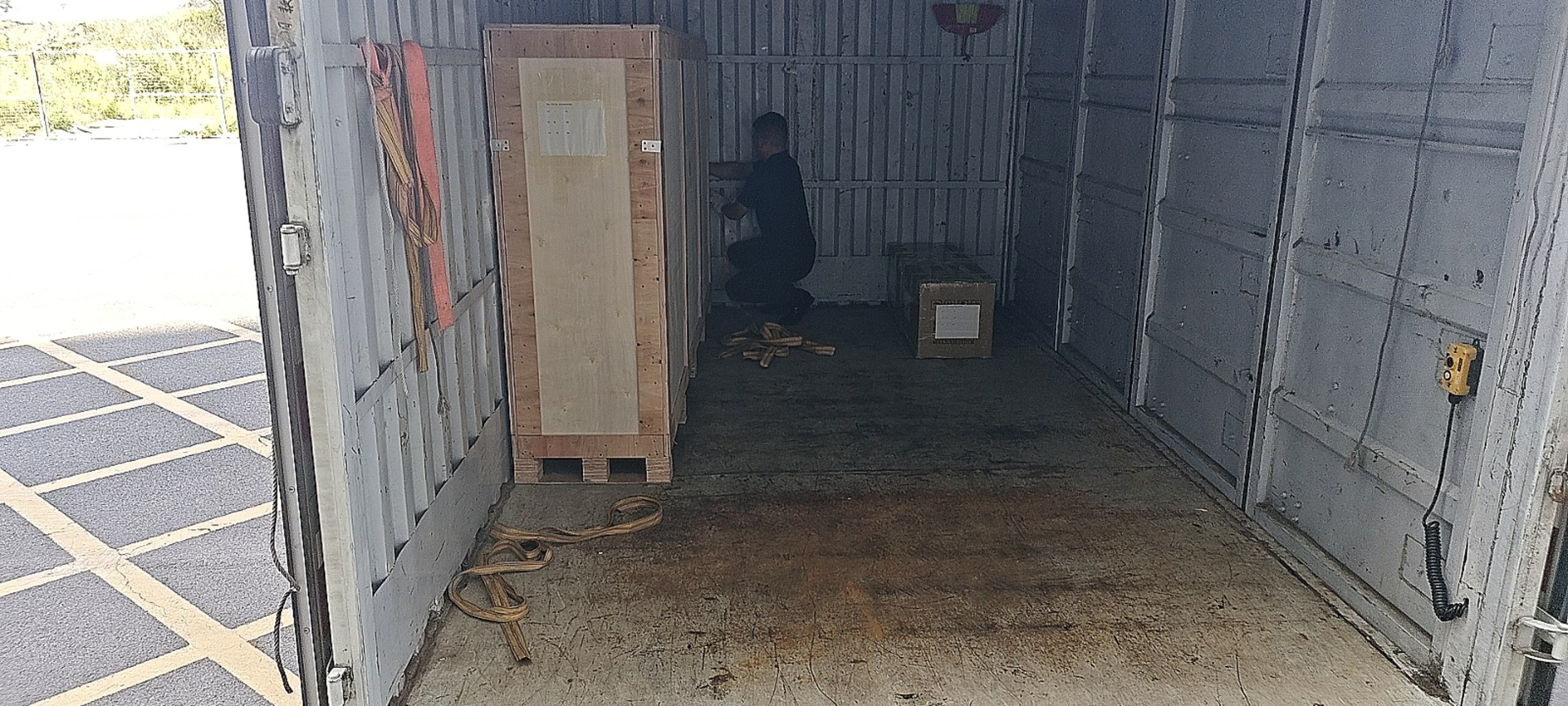

Both faces are powered on and tested in full color before packing. The faces travel in plywood crates, with the spare parts packed in the same shipment to the United States.
Get the Same Configuration Quoted
Send three things and you will get a configuration quote: the face size you need (or start from this order's 4 ft x 8 ft), where the sign will stand, and the destination city or port. The quote covers the display, its control system and a spare-parts kit with the same coverage as this shipment.
Use the contact page on this site, or message the team on WhatsApp at +86 135 3087 9746. We reply with configuration options first, then the numbers.
